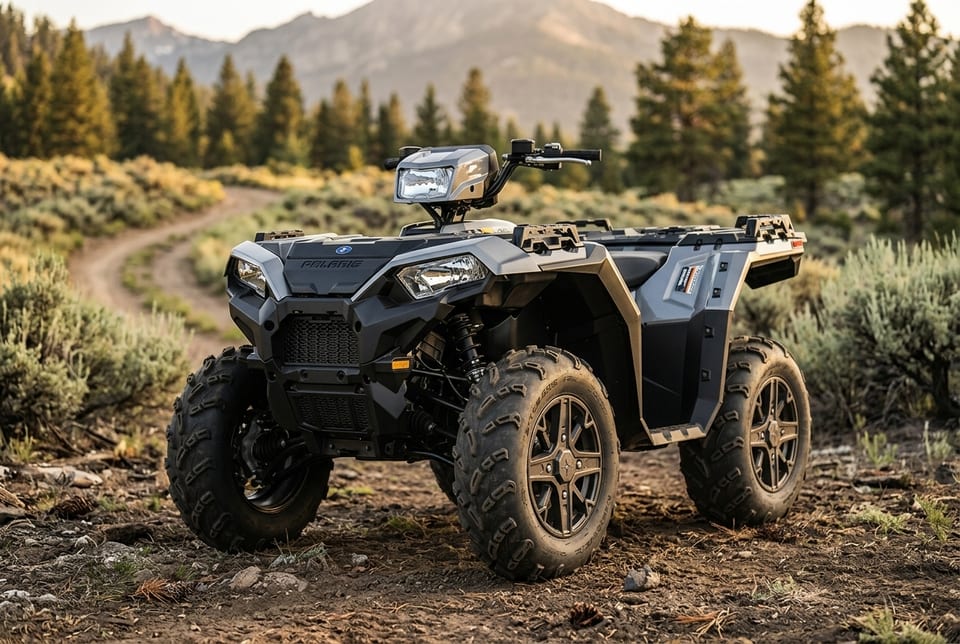

Polaris Sportsman XP 1000

Name: Polaris Sportsman XP 1000
Brand: Polaris

The top-of-range sport-rec ATV in the Sportsman lineup, built for riders who want the most the 952 cc ProStar twin can offer on long trail days. More grunt than the 850 with 1,500 lb towing capacity and 12 inches of ground clearance for serious terrain.

Model specs

Max HP: 90
Displacement: 952 cc
Towing: 1,500 lbs
Fuel Capacity: 5.25 gal
Seat Height: 37 in
Wheelbase: 53 in

Polaris Sportsman XP 1000 ATVs For Sale

Sort by:

No listings available yet.

What changed by model year

All 5 model years, 2015 to 2021.

Polaris Sportsman XP 1000 specifications by model year. Values that changed from the previous model year are marked.
Spec	2021	2019	2018	2017	2015
Engine & Performance
Engine Type	ProStar SOHC 4-Stroke Twin Cylinder	ProStar SOHC 4-Stroke Twin Cylinder, changed from the previous model year	ProStar 952cc, 4-Stroke SOHC Twin Cylinder, changed from the previous model year	4-Stroke SOHC Twin Cylinder	4-Stroke SOHC Twin Cylinder
Transmission	Automatic PVT P/R/N/L/H inline shifting, changed from the previous model year	Automatic PVT P/R/N/L/H; Shaft Drive, changed from the previous model year	Automatic PVT P/R/N/L/H; Shaft	Automatic PVT P/R/N/L/H; Shaft	Automatic PVT P/R/N/L/H; Shaft
Drive System	One Touch On-Demand AWD/2WD, changed from the previous model year	True On-Demand AWD/2WD, changed from the previous model year	High Performance True On-Demand AWD/2WD, changed from the previous model year	High Performance On-Demand True AWD/2WD, changed from the previous model year	High Performance Close Ratio On-Demand True AWD/2WD
Dimensions & Weight
Ground Clearance	12 in, changed from the previous model year	11.5 in	11.5 in	11.5 in	11.5 in
Dry Weight	801 lbs	801 lbs, changed from the previous model year	805 lbs, changed from the previous model year	834 lbs, changed from the previous model year	872 lbs
Suspension & Track
Suspension Front	Straight Dual A-Arm 9 in Travel, changed from the previous model year	High Clearance Arched Dual A-Arm 9 in Travel	High Clearance Arched Dual A-Arm 9 in Travel	High Clearance Arched Dual A-Arm 9 in Travel, changed from the previous model year	Dual A-Arm 9 in Travel
Suspension Rear	Straight Dual A-Arm, Rolled IRS, 10.25 in Travel, changed from the previous model year	High Clearance Arched Dual A-Arm, Rolled IRS, 10.25 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 10.25 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 10.25 in Travel, changed from the previous model year	Dual A-Arm, Rolled 10.25 in Travel
