Polaris Sportsman XP 1000 High Lifter Edition

Name: Polaris Sportsman XP 1000 High Lifter Edition
Brand: Polaris

The Sportsman XP 1000 built for riders who spend their time in the deep mud, not just crossing it. It starts from the standard Sportsman XP 1000 and adds a full set of changes developed with High Lifter Products, the specialists in turning ATVs into purpose-built mud machines. What separates it from the rest of the Sportsman range is the combination of a mud-specific transmission with lower gear ratios, sized to handle the 30-inch Outlaw II tires without giving up too much performance, a rack-mounted radiator with inverted dual fans to shield it from debris and manage heat while pushing through thick muck, and a factory-installed 3,500 lb HD winch and center-mounted mud bar, standard on the XP 1000 High Lifter Edition only.

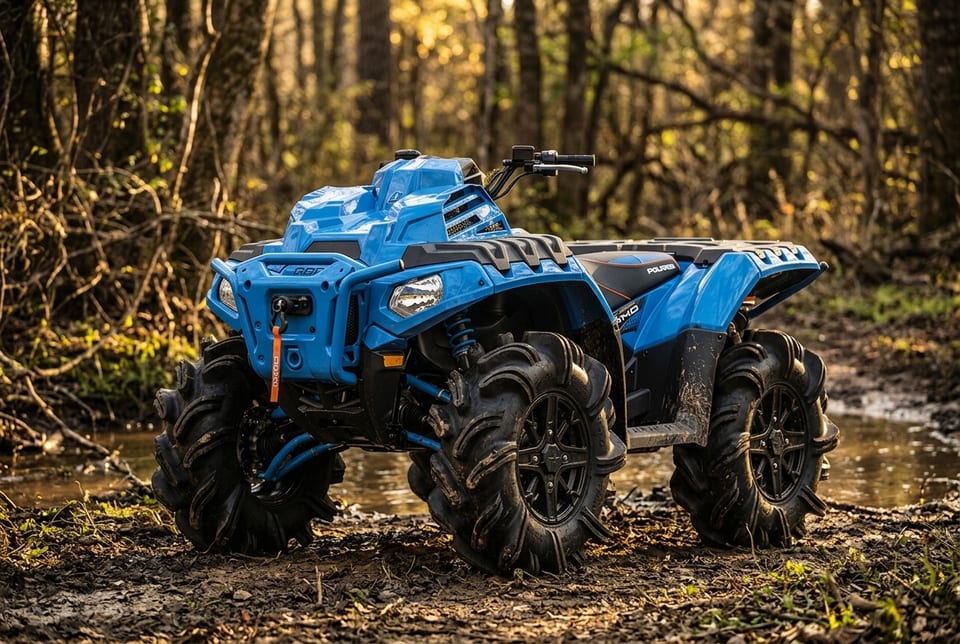

Polaris Sportsman XP 1000 High Lifter Edition ATV

Model specs

Max HP: 85
Displacement: 952 cc
Towing: 1,500 lbs
Fuel Capacity: 5.25 gal
Suspension Front: High Clearance Arched Dual A-Arm 7.4 in Travel
Ground Clearance: 13.5 in
Seat Height: 39 in
Wheelbase: 53 in

Polaris Sportsman XP 1000 High Lifter Edition ATVs For Sale

Sort by:

No listings available yet.

What changed by model year

All 9 model years, 2016 to 2024.

Polaris Sportsman XP 1000 High Lifter Edition specifications by model year. Values that changed from the previous model year are marked.
Spec	2024	2023	2022	2021	2020	2019	2018	2017	2016
Engine & Performance
Engine Type	ProStar 4-Stroke SOHC Twin Cylinder, changed from the previous model year	ProStar SOHC 4-Stroke Twin Cylinder	ProStar SOHC 4-Stroke Twin Cylinder	ProStar SOHC 4-Stroke Twin Cylinder	ProStar SOHC 4-Stroke Twin Cylinder	ProStar SOHC 4-Stroke Twin Cylinder, changed from the previous model year	ProStar 952cc, 4-Stroke SOHC Twin Cylinder, changed from the previous model year	4-Stroke SOHC Twin Cylinder	4-Stroke SOHC Twin Cylinder
Transmission	Automatic PVT P/R/N/L/H inline shifting	Automatic PVT P/R/N/L/H inline shifting	Automatic PVT P/R/N/L/H inline shifting	Automatic PVT P/R/N/L/H inline shifting, changed from the previous model year	Automatic PVT P/R/N/L/H; Shaft Drive	Automatic PVT P/R/N/L/H; Shaft Drive, changed from the previous model year	Automatic PVT P/R/N/L/H Extra Low Low Gear; Shaft, changed from the previous model year	Automatic PVT P/R/N/L/H; Shaft, changed from the previous model year	Automatic PVT P/R/N/L/H
Drive System	One Touch On-Demand AWD/2WD	One Touch On-Demand AWD/2WD	One Touch On-Demand AWD/2WD	One Touch On-Demand AWD/2WD, changed from the previous model year	True On-Demand AWD/2WD	True On-Demand AWD/2WD, changed from the previous model year	High Performance True On-Demand AWD/2WD, changed from the previous model year	High Performance On-Demand True AWD/2WD, changed from the previous model year	High Performance Close Ratio On-Demand True AWD/2WD
Dimensions & Weight
Dry Weight	934 lbs	934 lbs, changed from the previous model year	974 lbs	974 lbs	974 lbs	974 lbs	974 lbs, changed from the previous model year	927 lbs, changed from the previous model year	974 lbs
Suspension & Track
Suspension Rear	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel	High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in Travel, changed from the previous model year	High Clearance Arched Dual A-Arm, Rolled 6.7 in Travel
